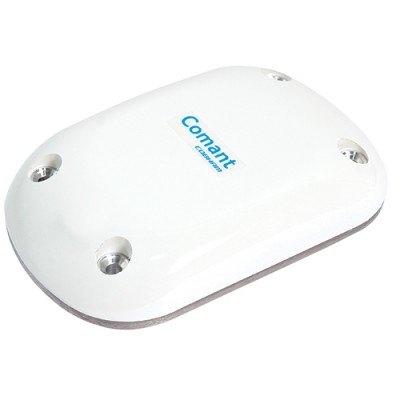

COMANT GPS WAAS / SIRIUS XM ANTENNA CI 428-410
Part #: CI-428-410
Availability: In Stock
CI428410
$1,389.30
compareOverview
New WAAS GPS/XM for Garmin systems. One of the newest and very popular ComDat GPS/XM multifunction antennas featuring GPS WAAS. When connected to Garmin WAAS systems such as G1000, 430W and 530W this ComDat enables primary navigaion including terminal navigation and approach to landing. XM Weather port designed for Garmin GDL 69 and 69a systems as well as Heads Up Technologies systems with shorter coax runs.
| Weight | 0.5 lbs |
|---|---|
| Brands |
Specifications
|
MODEL- CI 428-410
|
|
|
GPS Preamplifier Characteristics
|
|
|
Frequency
|
1575.42 MHz +/-3 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
RHCP
|
|
Radiation Pattern
|
Hemispherical
|
|
Impedance
|
50 Ohms
|
|
Gain @ 1575.42
|
26.5-30.1 dB
|
|
DC Voltage
|
4-24 Volts
|
|
DC Current Min/Max
|
40mA Min./60mA Max.
|
|
Noise Figure
|
2.5 dB
|
|
Selectivity
|
-35 dB Min @ Satcom Frequency
|
|
XM Weather Data Specification
|
|
|
Frequency
|
2332.5-2345.0 MHz
|
|
VSWR
|
1.5:1 Maximum
|
|
Polarization
|
LHCP
|
|
Radiation Pattern
|
Hemispherical
|
|
Impedance
|
50 Ohms
|
|
Gain @ 1575.42
|
25 +/-2dB
|
|
DC Voltage
|
3.6-24 Volts
|
|
DC Current Min/Max
|
35mA-55mA
|
|
Noise Figure
|
2.7 dB Maximum
|
|
Mechanical/ Environmental
|
|
|
Weight
|
6.5 Ounces
|
|
RTCAEnv./ TSO
|
Do 160/TSO C144
|
|
Connector
|
GPS-TNC Blue/ XM-TNC Red
|
