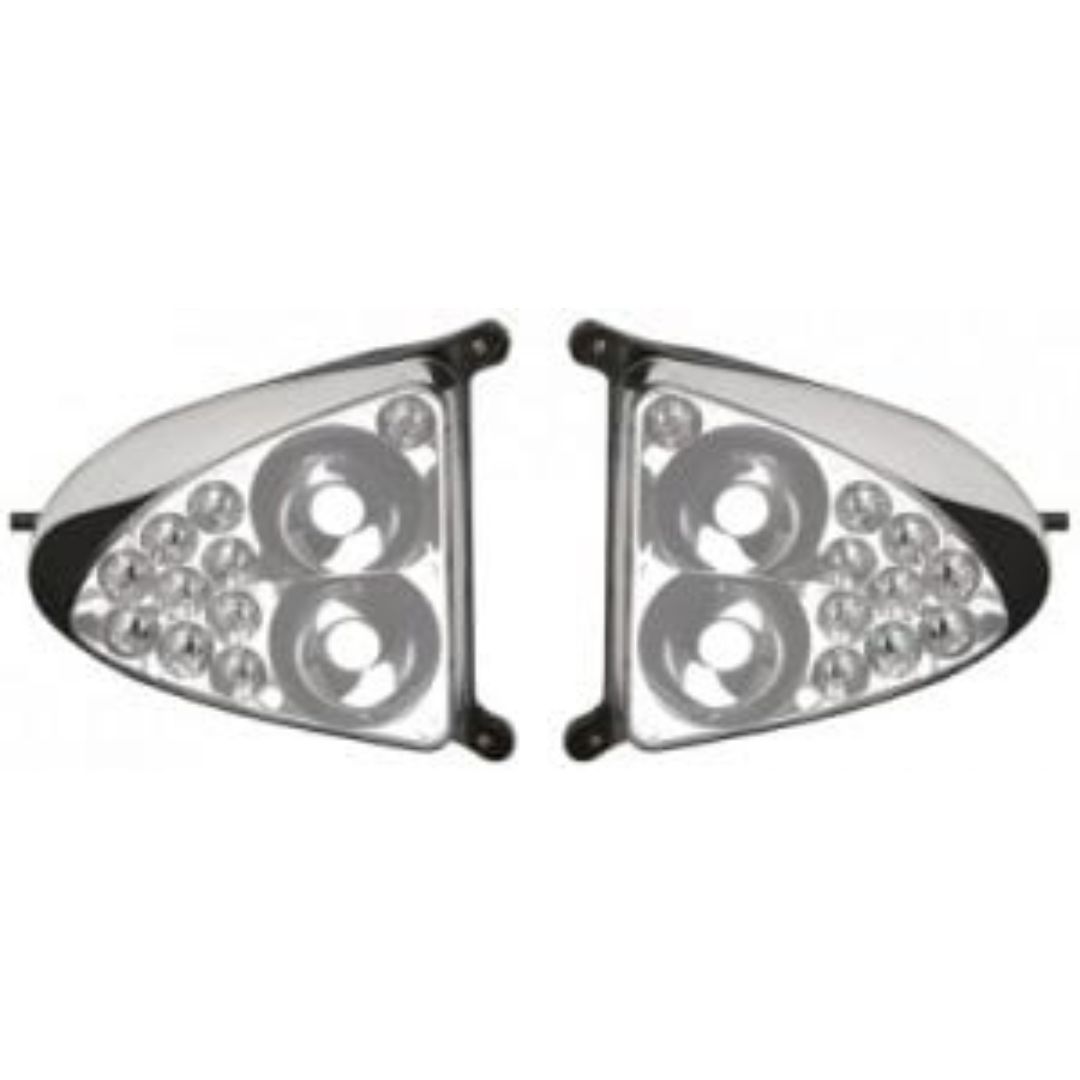

AEROLEDS AEROSUN VX LANDING LIGHT FOR RV PAIR NON-TSO FOR EXPERIMENTAL AIRCRAFT
Part #: 01-2500
012500
Pair
$895.00
compareOverview
The Aerosun Vx is a high intensity wingtip landing/taxi/recognition light designed specifically for the Van’s RV family of aircraft. Each pair draws 165 Watts of power and generate 13,300 lumens of light. The lights include a built-in wig-wag controller for a synchronized recognition light mode. The AeroSun Vx can be installed in any RV-6, RV-7, or RV-8 that has a set of W-715-1 fiberglass wingtip fairings with the 6″ wide light cove. RV-9 will require the AeroLEDs conversion Kit P/N’s 01-2500-KT-1 & 01-2500-KT-1A. RV10/14 will require AeroLEDs conversion Kit 01-2500-KT-2 and will work with the existing wingtip window supplied from vans (VA-193).
Note: The AeroSun Vx is not eligible for installation on the RV-12 platform.
| Weight | 1.93 lbs |
|---|---|
| Dimensions | 6.3 × 5.7 × 3.4 in |
| Brands |
Specifications
- Power:165 Watts
- Voltage:9-40 VDC
- Current: 11.8A total for pair at 14VDC, 2.6A taxi mode
- Pulse: Built In
- Wig Wag Sync: Built in
- Lumens:13,300 combined
- Candela: 120,000 Combined
- Beam Angle: 20ºx20º
- Weight: 31 Ounces combined
- Dimensions:6.3″ x 5.7″ x 3.4″ ea
Documents
AeroSun Vs Installation Application Guide
